FidoUafAuthState

nevisAuth 4.38.x HTTP client changes

The new HTTP client shipped with nevisAuth 4.38.0.12 will likely require changes in this auth state configuration, specifically in the area of certificate configuration and handling.

Visit the migration guide for additional information.

Introduction and overview

The FidoUafAuthState AuthState manages the UAF authentication in a nevisFIDO server.

info

The section refers to protocol messages defined in the FIDO UAF HTTP Transport Specification.

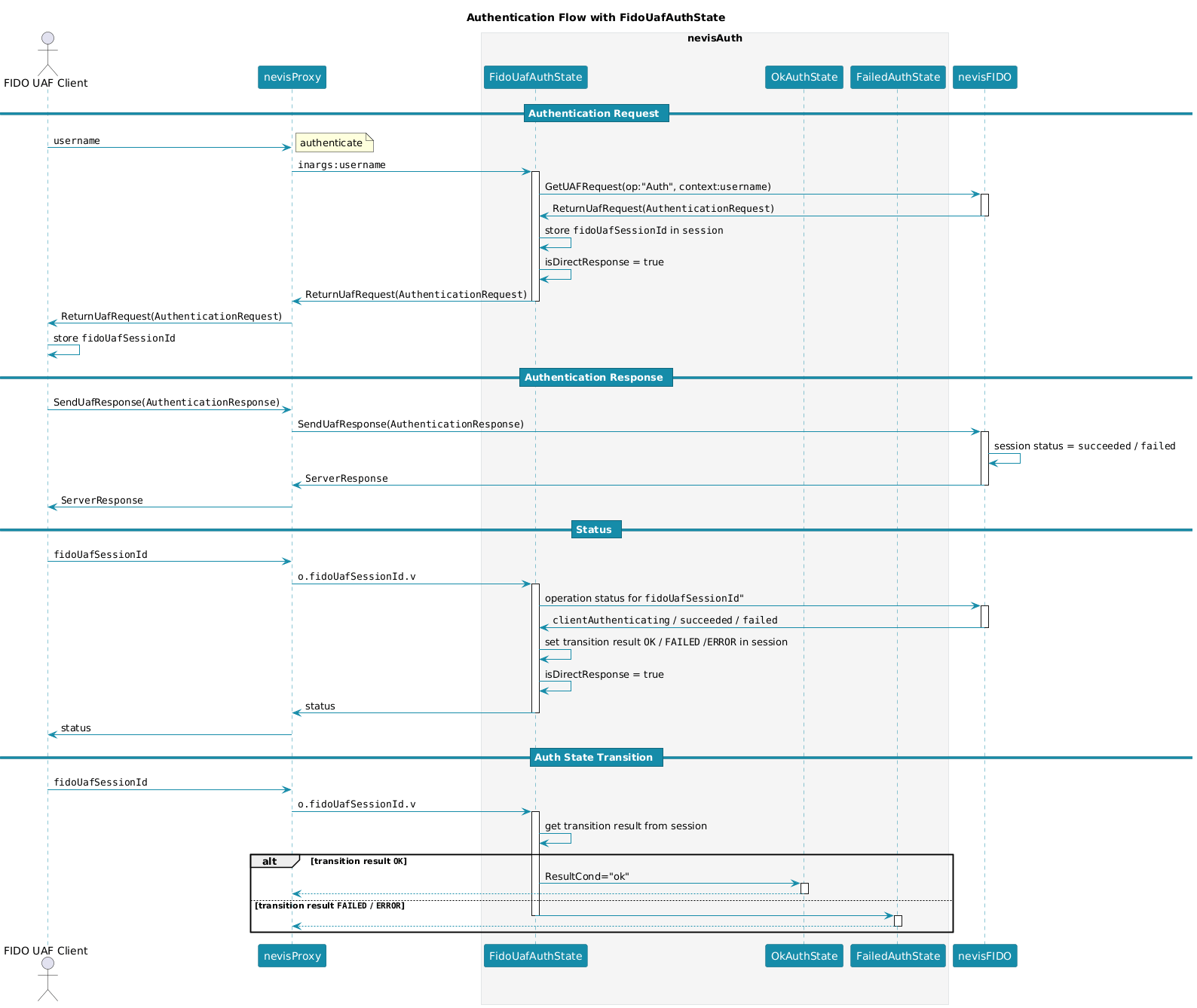

The UAF authentication process including nevisAuth and the FidoUafAuthState is as follows:

1. The FidoUafAuthState sends a GetUAFRequest to the nevisFIDO server using the fidoUafUsername attribute. The value of this attribute, that is, the username can be retrieved in different ways:

• By authenticating the user through an AuthState configured before the FidoUafAuthState. The username value can be a variable expression using notes.

• The HTTP client provides the FIDO UAF username directly in the incoming request as JSON or FORM parameters. The username value can be a variable expression using inargs.

  In the context of transaction confirmation, the FidoUafAuthState can be configured with a list of FIDO UAF transactions sent to the nevisFIDO server as part of the GetUAFRequest. See the FIDO UAF Protocol Specification for more information.

2. The nevisFIDO server returns a ReturnUafRequest to nevisAuth, which forwards this response to the client. If the GetUAFRequest includes transactions, the ReturnUafRequest also contains these transactions, see Authentication Request Service for more information.

3. The client processes the ReturnUafRequest and authenticates the user on the FIDO authenticator. The ReturnUafRequest contains an AuthenticationRequest with an OperationHeader including an Extension. The Extension provides a FIDO UAF session ID, like the one in the following code snippet:

   {
     "id" : "ch.nevis.auth.fido.uaf.sessionId",
     "value" : "asdetwdIDsdfsewSAdsds09823423sdfsd9ds"
   }

4. The client sends a SendUafResponse directly to the nevisFIDO server.

5. The client queries nevisAuth. It depends on the configuration of the fidoUafSessionId property in the FidoUafAuthState whether the client is to provide the property. By default, the client is required to send the property in a POST with a payload like this:

   { "fidoUafSessionId" : "asdetwdIDsdfsewSAdsds09823423sdfsd9ds" }

6. The FidoUafAuthState processes the authentication status query, by checking in the nevisFIDO server whether the user is authenticated. If so, the FidoUafAuthState is set to ok. nevisAuth sends a response to the client including a payload like this:

   { "status" : "succeeded" }

7. The client has to send another request to nevisAuth to continue with the authentication process.

info

To allow chained UAF AuthStates, nevisAuth removes the stored FIDO UAF session ID every time an AuthState transition occurs in the FidoUafAuthState. As a consequence, the HTTP client receives the authenticated status only once for a given session ID. The next queries with the same session ID return an unknown status.

This is to prevent the following undesired situation: suppose a given configuration consists of the two chained UAF AuthStates AuthState1 and AuthState2. If the user authenticates in AuthState1, the AuthEngine makes AuthState2the current AuthState. If the client sends an authentication status request with the session ID used inAuthState1, and the session is not cleaned up, then the user is considered to be authenticated inAuthState2`.

Restarting the FIDO UAF Authentication

To be able to retrieve the authentication status, nevisAuth requires the FIDO UAF session ID. If the fidoUafSessionId property is not provided in the nevisAuth configuration, it must be provided as part of the request (using the fidoUafSessionId JSON attribute).

caution

In any case where a FIDO UAF session ID cannot be associated with the client, the client will initiate an authentication flow, even though an authentication was already triggered. If you configure fidoUafSessionId in nevisAuth, the client may lose this ability to control redundant authentications.

The main reasons for requiring the session ID are:

• Requiring the session ID adds a security layer to what already is provided by nevisAuth and nevisProxy. Stealing the cookie is not enough to hijack the authentication session. An attacker must also have access to the session ID returned in a previous request by nevisAuth. That is, by stealing the cookie, the attacker can prevent the user from being authenticated by restarting the FIDO UAF authentication (see the point below). However, without the session ID the attacker will not be able to authenticate.

• Requiring the session ID allows a client application to restart the FIDO UAF authentication at any point in time. This can help to improve the user experience.

By default, sending a request without a FIDO UAF session ID is enough to restart the FIDO UAF authentication. This can be useful in different scenarios, for instance:

• The application requiring authentication is executed in the browser in a laptop whereas the FIDO UAF authentication is done in a mobile device (out-of-band scenario). Suppose the browser polls nevisAuth for the authentication status, but the authentication is still going on after a certain time. Then the application can ask the user to trigger a new FIDO UAF authentication by confirming a message. Note that the browser application could also decide to restart the whole authentication, by removing the nevisAuth cookie. However, this could be annoying for the end user.
• The FIDO UAF client is the one interacting with nevisAuth. The FIDO UAF client detects an error in the interaction with the user. Instead of restarting the entire authentication, the FIDO UAF client can decide to restart only the FIDO UAF authentication.
• An example using this behaviour is described in Authentication Retry / Fallback Example.

Description

The following table and chapters describe the characteristics of the AuthState.

Topic	Description
Class	ch.nevis.auth.fido.uaf.authstate.FidoUafAuthState
Logging	FidoUaf
Auditing	none
Marker	none
Methods	process

Properties

• fidoUafUsername (string, optional)

  Username of the user in the nevisFIDO server.

  Examples:

  • ${inargs:username}
  • ${inargs:o.username.v}: Provides the username in the request parameter username. For instance if the client sends this payload in the HTTP request { "username" : "jsmith" }, the username that will be used is jsmith.

• fidoUafServerUrl (string, required)

  Base URL of the nevisFIDO server. You cannot use variable expressions to specify this value.

  Example: https://siven.ch:8443/nevisfido.

  With this configuration the FIDO UAF AuthState will send the GetUAFRequest to https://siven.ch:8443/nevisfido/uaf/1.1/request/authentication.

• fidoUafSessionId (string, optional)

  The session ID required to query nevisFIDO about the status of an ongoing authentication.

  Default value: ${inargs:o.fidoUafSessionId.v}.

  With the default value, the client is expected to maintain and send the FIDO UAF session ID to nevisAuth using a POST with the following payload:

  { "fidoUafSessionId" : "the_session_ID" }

• fidoUafTransactions (string, optional)

  The transactions that can be provided to nevisFIDO in the GetUAFRequest. The string represents a JSON array with the transactions as defined in the {uaf-transaction-confirmation-dictionary-spec}.

  Example: { "contentType": "text/plain", "content": "VGhlIHRyYW5zYWN0aW9uIGNvbmZpcm1hdGlvbiB0ZXh0" }

• fidoUafPolicy (string, optional)

  Name of the policy to be used for the authentication. If no value is specified the default policy will be used. See policy configuration for more information regarding configuring multiple policies.

  This can be used to restrict the authenticators that can be used by the client to authenticate. For example, if the operation is sensible and biometric authentication is considered to be stronger than PIN, here you can specify a policy that only allows biometric authenticators.

• httpclient.* (string)

Configure the outgoing HTTP communication towards nevisFIDO. For a list of valid HTTP properties, see HTTP Client configuration.

Input

• fidoUafSessionId

  The FidoUafAuthState queries the nevisFIDO server to check whether the session with the provided ID is authenticated. The FIDO UAF session ID can be provided using a POST with the following payload: { "fidoUafSessionId" : "the_session_ID" }

  info

  This is the equivalent of sending the session ID in the o.fidoUafSessionId.v attribute of the inargs.

Transitions

• error

  If an error occurred in the communication with nevisFIDO.

• failed

  If nevisFIDO reports a failed authentication (in response to the client’s query for the authentication status).

• ok

  If nevisAuth detects a successfully authenticated user in nevisFIDO. In this case, nevisFIDO responses positively to the client’s query for the authentication status.

Output

• ReturnUafRequest

  If the FidoUafAuthState generates a GetUAFRequest, it will forward the response from the nevisFIDO server, a ReturnUafRequest object, to the client. The client must process this ReturnUafRequest, authenticate the user and eventually send a SendUafResponse with the AuthenticationResponse to the nevisFIDO server.

  Payload with authentication status:

  If the FidoUafAuthState queried nevisFIDO regarding the authentication status of the session, it will return a JSON object describing the status. Example:

    {
      "status": "succeeded",
      "timestamp": "2018-12-14T20:37:48.556Z",
      "uafStatusCode": 1200,
      "userId": "09890989009",
      "authenticators": [
        {
          "aaid": "ABBA#0001"
        }
      ]
    }

Session

• ch.nevis.auth.fido.uaf.authenticators

Contains the JSON serialized FIDO UAF authenticators that were used to successfully complete the FIDO UAF authentication operation at nevisFIDO. Example value:

[{"aaid":"AAAA#2222","keyId":"a2V5SWQy", "extId": "432a39e8-b3f9-4dc3-b2b1-c2aafed8e42d"},{"aaid":"AAAA#1111","keyId":"a2V5SWQx", "extId": "78266d59-2bbe-4fb0-9e01-bed08c4e0fb3"}]

• ch.nevis.auth.fido.uaf.device

Contains the JSON serialised generic dispatch target credential information which is associated to the FIDO UAF authenticator credential used during authenticaiton.

{"extId": "fdbcf7a0-6b3c-49ce-8636-60c048845cf0"}

Errors

none

Notes

Deprecated

This variable is deprecated and replaced by the same variable in the session scope.

• ch.nevis.auth.fido.uaf.authenticators

Contains the JSON serialized FIDO UAF authenticators that were used to successfully complete the FIDO UAF authentication operation at nevisFIDO. Example value:

[{"aaid":"AAAA#2222","keyId":"a2V5SWQy"},{"aaid":"AAAA#1111","keyId":"a2V5SWQx"}]

Example

The AuthState in the following example integrates FIDO UAF authentication in nevisAuth using the nevisFIDO server located in siven.ch with port 8443. The FIDO UAF username is retrieved from the username parameter of the notes.

<AuthState name="FidoUafAuthState" class="ch.nevis.auth.fido.uaf.authstate.FidoUafAuthState" resumeState="false">
    <ResultCond name="ok" next="AuthDone"/>
    <ResultCond name="error" next="AuthError"/>
    <ResultCond name="failed" next="AuthError"/>
    <property name="fidoUafUsername" value="${sess:username}"/>
    <property name="fidoUafServerUrl" value="https://siven.ch:8443/nevisfido"/>
    <property name="httpclient.tls.truststoreRef" value="DefaultKeyStore"/>
</AuthState>

info

The FidoUafAuthState does not display a GUI. This means that defining GUI elements or setting the property final to "true" will have no effect.

Request and Response Examples

Request Body Providing Username

It is assumed that the fidoUafUsername attribute value is ${inargs:o.username.v} and the transactions attribute is ${inargs:o.transaction.v}.

info

The transactions must be provided as a stringified JSON array.

{
  "username": "jeff",
  "transaction": "[{\"contentType\":\"text/plain\",\"content\":\"Q29uZmlybSB5b3VyIHB1cmNoYXNlIGZvciBhIHZhbHVlIG9mIENIRjIwMC4\"}]"
}

Response Containing AuthRequest

HTTP/1.1 200 OK
Date: Mon, 25 Jul 2022 11:30:56 GMT
Content-Type: application/fido+uaf;charset=UTF-8
Transfer-Encoding: chunked
Content-Length: 813

{
  "lifetimeMillis" : 120000,
  "uafRequest" : "[{\"header\":{\"serverData\":\"ervVRaEsmebKoT53bZhWBsOOcq_HhYunZj-3mJExXVBwa1vNhJSvzaVQB7AxvFJk7YcoXw5l6t2Dr-kv7gpvug\",\"upv\":{\"major\":1,\"minor\":1},\"op\":\"Auth\",\"appID\":\"https://www.siven.ch/appID\",\"exts\":[{\"id\":\"ch.nevis.auth.fido.uaf.sessionid\",\"data\":\"0eb8b439-1092-428b-a595-21ea96fe30a0\",\"fail_if_unknown\":false}]},\"challenge\":\"2B7oYIQIh49QDR2P0WCBydh_l_bACgDvfU-jmnXdPn6mWIrseNJOTDEvfy5k5MtsrVu1hrX7o35Rt0y-TMHsWA\",\"policy\":{\"accepted\":[[{\"userVerification\":1023,\"authenticationAlgorithms\":[1,2,3,4,5,6,7,8,9],\"assertionSchemes\":[\"UAFV1TLV\"]}]]},\"transaction\":[{\"contentType\":\"text/plain\",\"content\":\"Q29uZmlybSB5b3VyIHB1cmNoYXNlIGZvciBhIHZhbHVlIG9mIENIRjIwMC4\"}]}]",
  "statusCode" : 1200,
  "op" : "Auth"
}

Status Request Body

It is assumed that the fidoUafSessionId attribute value is ${inargs:o.fidoUafSessionId.v}.

{
  "fidoUafSessionId": "1c8a5b00-165c-4a63-ae13-2e03fb7f57ce"
}

Status Response

HTTP/1.1 200 OK
Date: Mon, 04 Feb 2019 12:42:29 GMT
Content-Type: application/json;charset=utf-8
Transfer-Encoding: chunked
Content-Length: 415

{
  "status" : "succeeded",
  "timestamp" : "2019-02-04T12:44:34.980Z",
  "uafStatusCode" : 1200,
  "asmStatusCode" : 0,
  "clientErrorCode" : 0,
  "userId" : "123122233",
  "authenticators" : [ {
    "aaid" : "ABBA#0001"
  } ]
}
