Authenticate with autofill UI

Once a FIDO2-capable authenticator is registered, it can be used for authentication. To integrate the Authentication Cloud functions into your application, you must send an HTTP request to the approval endpoint, then use the approval response to prepare an input element for the user that will prompt an authentication dialog. Our JavaScript solution can handle the communication between the WebAuthn API and the Authentication Cloud API.

info

We suggest testing the autofill UI function on a wide variety of platforms and browsers, before deploying to a live application, as subtle differences between different platforms can mean slightly different implementation requirements.

Prerequisites of autofill UI​

Your website should contain an <input> element with the autocomplete="webauthn" attribute. This attribute is required to trigger the native browser dialog for the user to interact with the authenticator.

Autofill UI flow​

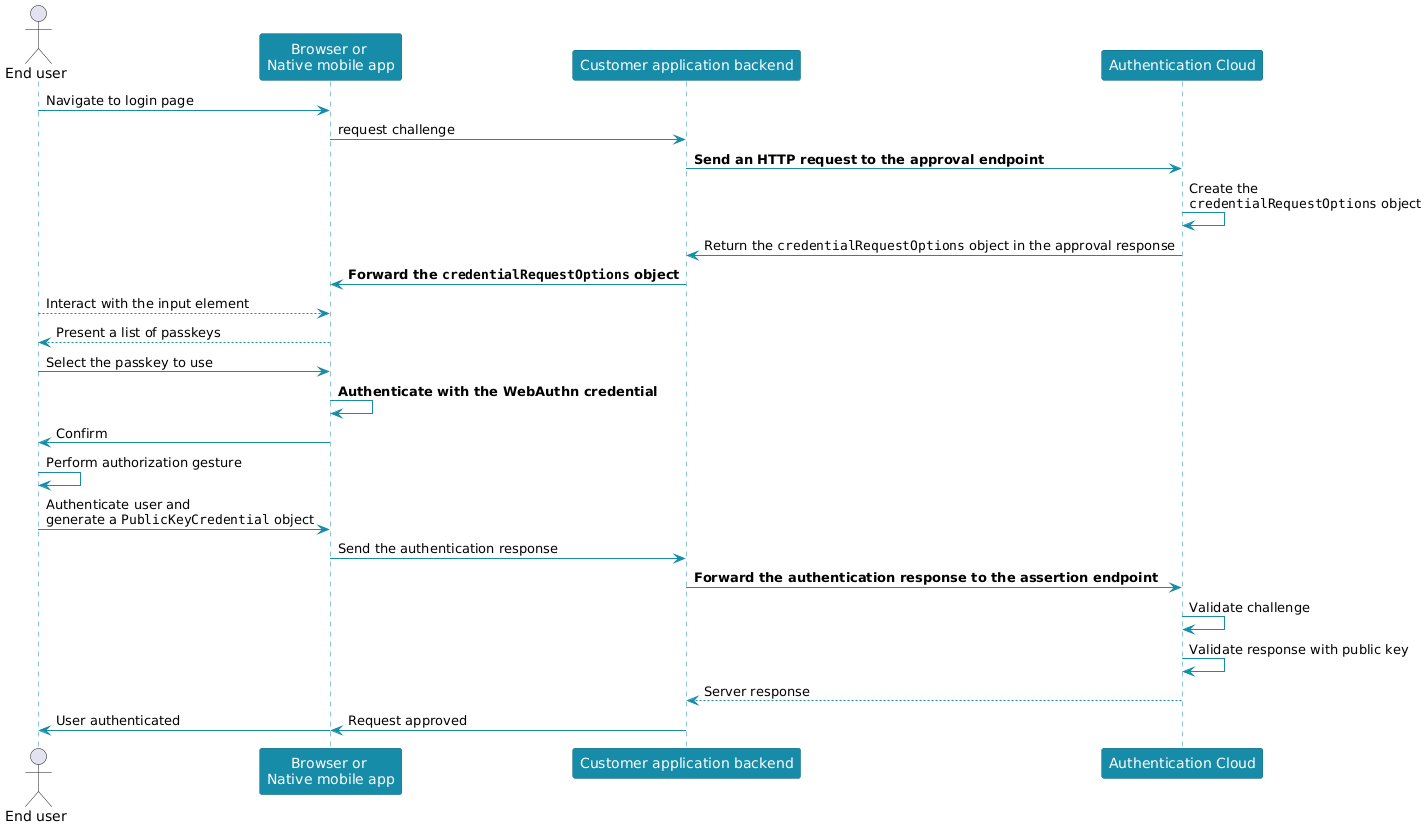

The following diagram shows the end-to-end sequence of an authentication operation using a FIDO2 authenticator. The steps that must be performed to integrate the Authentication Cloud into your application are in bold. Some steps are included in the JavaScript solution.

Send an HTTP request to the approval endpoint​

For detailed information on the HTTP request parameters and response fields, see the Approval endpoint page of the API reference documentation.

Send the POST https://{instance}.mauth.nevis.cloud/api/v1/approval call with your instance ID, and configure the HTTP request as follows:

  1. Send your access key or intent token in the Authorization Bearer token header. For more information on the intent token, see Intent endpoint.
  2. Set the channel parameter to fido2.
  3. Optionally, set the fido2Options.userVerification to preferred, required, or discouraged. With these settings you can customize the requirement for user verification. The default value is preferred.

HTTP request example​

cURL code sample for approval with custom FIDO2 options
curl "https://$instance.mauth.nevis.cloud/api/v1/approval"  \
  -XPOST \
  -H "Authorization: Bearer $access_key"    \
  -H 'Content-Type: application/json;charset=utf-8'     \
  -d "{ \"channel\":\"fido2\",
        \"fido2Options\": {
            \"userVerification\":\"required\"
        }
      }"

HTTP response example​

201 Created: Approval using a FIDO2 device

{
  "statusToken": "eyJ...iJ9.ey...fVag0LMfTMX5kQ",
  "transactionId": "8b2373-...-9698e35e",
  "credentialRequestOptions": {
    "challenge": "2LpI-1C...drA",
    "rpId": "nevis-latest-dev-cbbc98.mauth.nevis.cloud",
    "timeout": 60000,
    "userVerification": "required"
  }
}

Forward the credentialRequestOptions object​

The approval response contains the credentialRequestOptions object, which is required by the WebAuthn API for authentication with the FIDO2 credential.

Authenticate with the WebAuthn credential using the JavaScript solution​

Once the credentialRequestOptions is forwarded to the browser, apply the Authentication Cloud JavaScript template to forward the WebAuthn credential. The frontend of the relying party must include a JavaScript solution to connect to the Authentication Cloud API.

The template includes the following WebAuthn calls:

  1. Using the @github/webauthn-json client-side Javascript library which is a convenience wrapper for the WebAuthn API.
  2. Checking if WebAuthn and Autofill UI is supported by the browser.
  3. Creating the authenticateOptions object with mediation: "conditional" property that will be needed by the @github/webauthn-json library.
  4. Calling the @github/webauthn-json library to authenticate with the WebAuthn credential. After a user interaction, a serverPublicKeyCredential object is returned.
    note

    A native browser dialog prompts the user when it interacts with the proper <input autocomplete="webauthn"> element to perform the authorization gesture. Once a user has given consent by doing so, the authenticator generates an assertion and a ServerPublicKeyCredential object is returned.

  5. Extending ServerPublicKeyCredential with the userAgent attribute to provide Authentication Cloud with vital information.
  6. Sending the updatedServerPublicKeyCredential to your application backend.
  7. Handling the success or failure response, based on the assertion endpoint response.

JavaScript template​

JavaScript template for forwarding the credential
// 0
import {
  create,
  parseCreationOptionsFromJSON,
  get,
  parseRequestOptionsFromJSON,
} from "https://unpkg.com/@github/[email protected]/dist/esm/webauthn-json.browser-ponyfill.js";

...
function defaultHeaders() {
  return {
    'Accept': 'application/json',
    'Content-Type': 'application/json;charset=utf-8',
  };
}

function isWebAuthnSupportedByTheBrowser() {
   if (!window.PublicKeyCredential || typeof window.PublicKeyCredential !== 'function') {
      console.error('Oh no! This browser doesn\'t currently support WebAuthn.');
      return false;
   }
   if (window.location.protocol === 'http:' && (window.location.hostname !== 'localhost' && window.location.hostname !== '127.0.0.1')){
      console.error('WebAuthn only supports secure connections. For testing over HTTP, you can use the origin "localhost".');
      return false;
   }
   return true;
}

async function isAutofillUIAvailable() {
   if (isWebAuthnSupportedByTheBrowser()
           && typeof window.PublicKeyCredential.isConditionalMediationAvailable === 'function'
           && await PublicKeyCredential.isConditionalMediationAvailable()) {
      return true;
   } else {
      console.warn('Conditional mediation (Autofill UI requirement) is not available.')
      return false;
   }
}


// 1
if (!await isAutofillUIAvailable()) {
  // case when the browser does not support Autofill UI
}

// 2
const authenticateOptions = {
  mediation: "conditional",
  publicKey: credentialRequestOptions
};

// 3
const parsedCredentialRequestOptions = parseRequestOptionsFromJSON(authenticateOptions);
const serverPublicKeyCredential = (await get(parsedCredentialRequestOptions)).toJSON();

// 4
serverPublicKeyCredential.userAgent = navigator.userAgent;

// 5
const response = await fetch(
      'https://<your-backend-url>', {
        method: 'POST',
        credentials: 'same-origin',
        headers: defaultHeaders(),
        body: JSON.stringify(serverPublicKeyCredential),
      });
const result = await response.json();

// 6
if (result.status === 'ok') {
  // handle success
} else {
  // handle failure, you can find more details in result.errorMessage
}

Forward the authentication response to the assertion endpoint​

Send the authentication response to the Authentication Cloud assertion API endpoint. This endpoint does not require a token.
