Version: 9.2605.x.x RR

ACME support for certificate management

Introduction

ACME is a protocol that automates certificate issuence, renewal and revocation. It was originally developed for Let’s encrypt but is now supported by various CA’s.

How the ACME protocol works:[https://letsencrypt.org/how-it-works/))

There exists a deprecated ACMEv1 and a recommended ACMEv2 version which is based on https://datatracker.ietf.org/doc/html/rfc8555/. This is the version supported.

The tool for managing/renewing certificates is ‘certbot’ which comes with the nevisAppliance. Certbot client consists of 2 parts:

certbot
certbot server plugin (likely python3-certbot-apache for nevisproxy)

Certbot has 2 different kind of plugins that use one of several ACME protocol challenges to prove one does control a domain:

Authenticators

These plugins can automatically perform the required steps to prove that you control the domain names you’re trying to request a certificate for. An authenticator is always required to obtain a certificate.

Installers

These plugins can automatically modify your web server’s configuration to serve your website over HTTPS, using the certificates obtained by Certbot. An installer is only required if you want Certbot to install the certificate to your web server.

Available plugins are described here: User Guide — Certbot 5.1.0 documentation (there are also 3rd party plugins for haproxy and others)

The tasks of certbot are:

Obtaining a certificate: automatically performing the required authentication steps to prove that you control the domain(s), saving the certificate to /etc/letsencrypt/live/ and renewing it on a regular schedule.
Optionally, installing that certificate to supported web servers (like Apache or nginx) and other kinds of servers. This is done by automatically modifying the configuration of your server in order to use the certificate.

The client can support different challenge types:

HTTP-01 (does not work if port 80 is ‘used/blocked'
DNS-01 (capable to issue ‘wildcard certificates’)

ATTENTION/CAVEATs

By using certbot with HTTP challenge, nothing must be bound/listening to port 80 on the specific machine as certbot does bind/use that port for interaction(http challenges) with the CA.
In rare cases the widely used HTTP challenge cannot be used, thus there’s a second type, the ACME DNS challenge that might be an option.
For wildcard certificates, only the DNS challenge can be used.

These are the key steps to automate certificates with ACME:

Select and configure ACME client
Choose CA
Generate key auth pair
Generate CSR and send to CA
Issue certificate
Install certificate
Automate cert renewal

How to integrate ACME on the nevisAppliance:

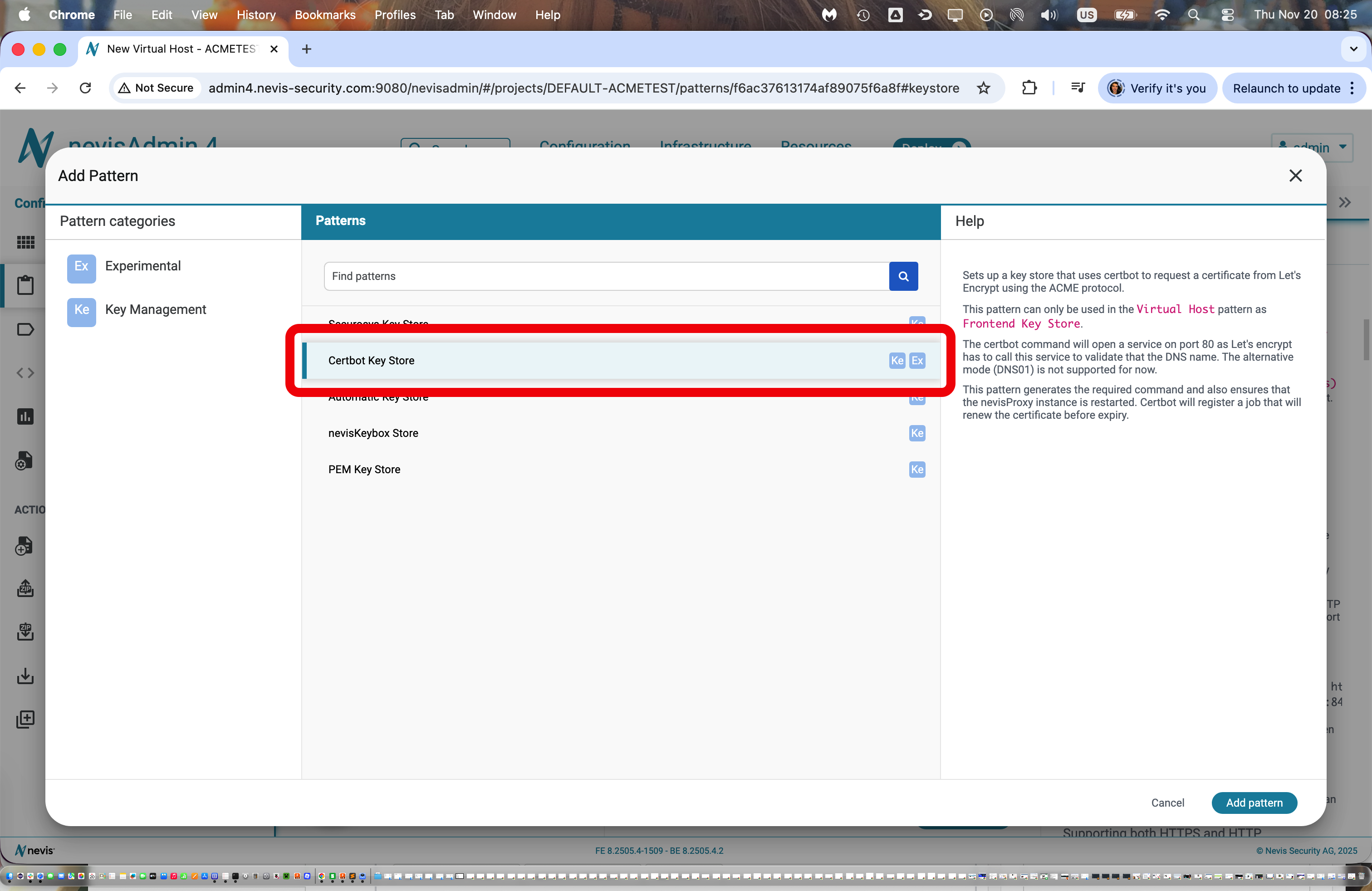

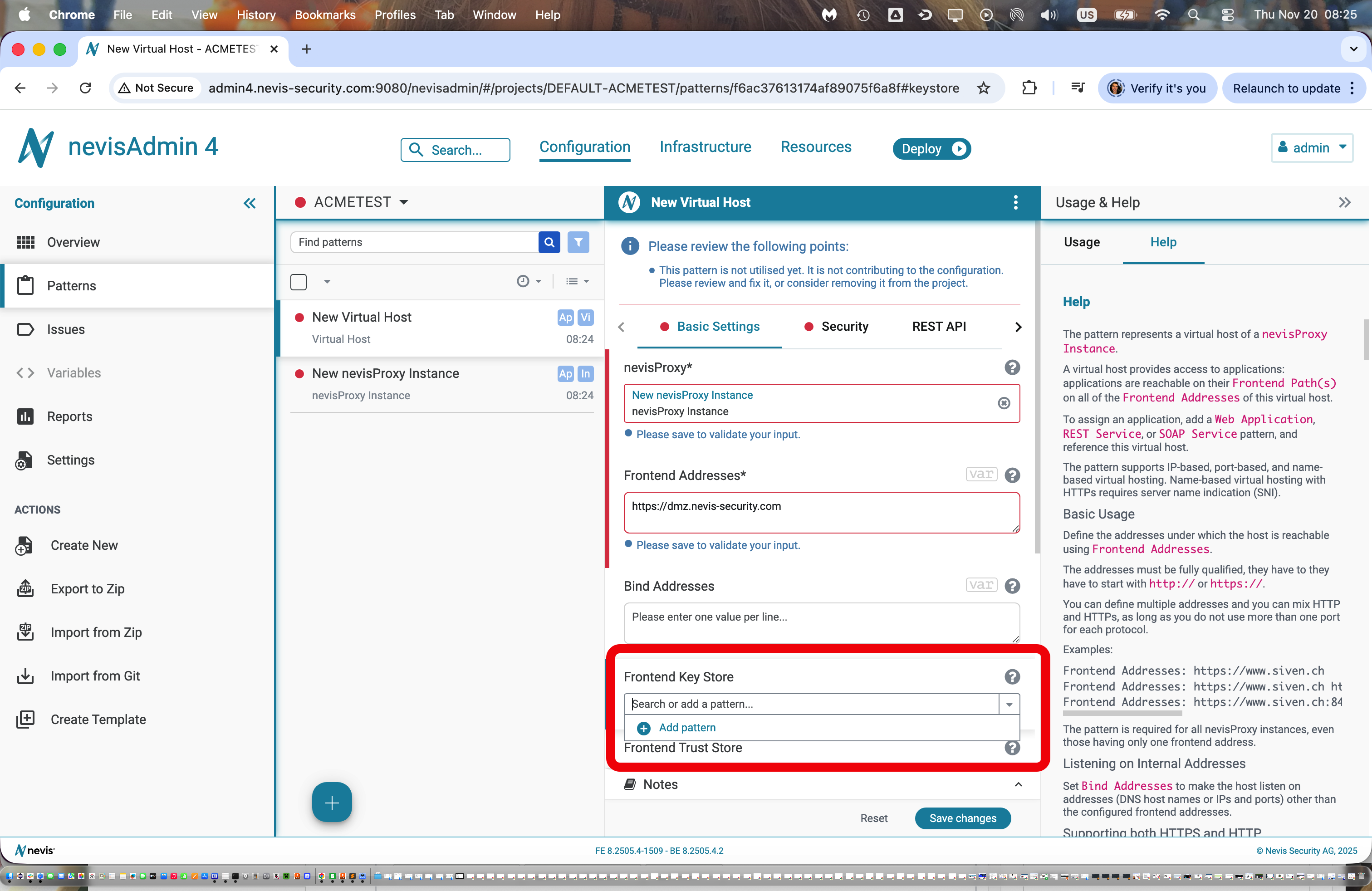

Using nevisAdmin4 and patterns (recommended way) Add a new key store pattern to the frontend of a nevisProxy Virtual Host (this is the customer facing certificate for the website)

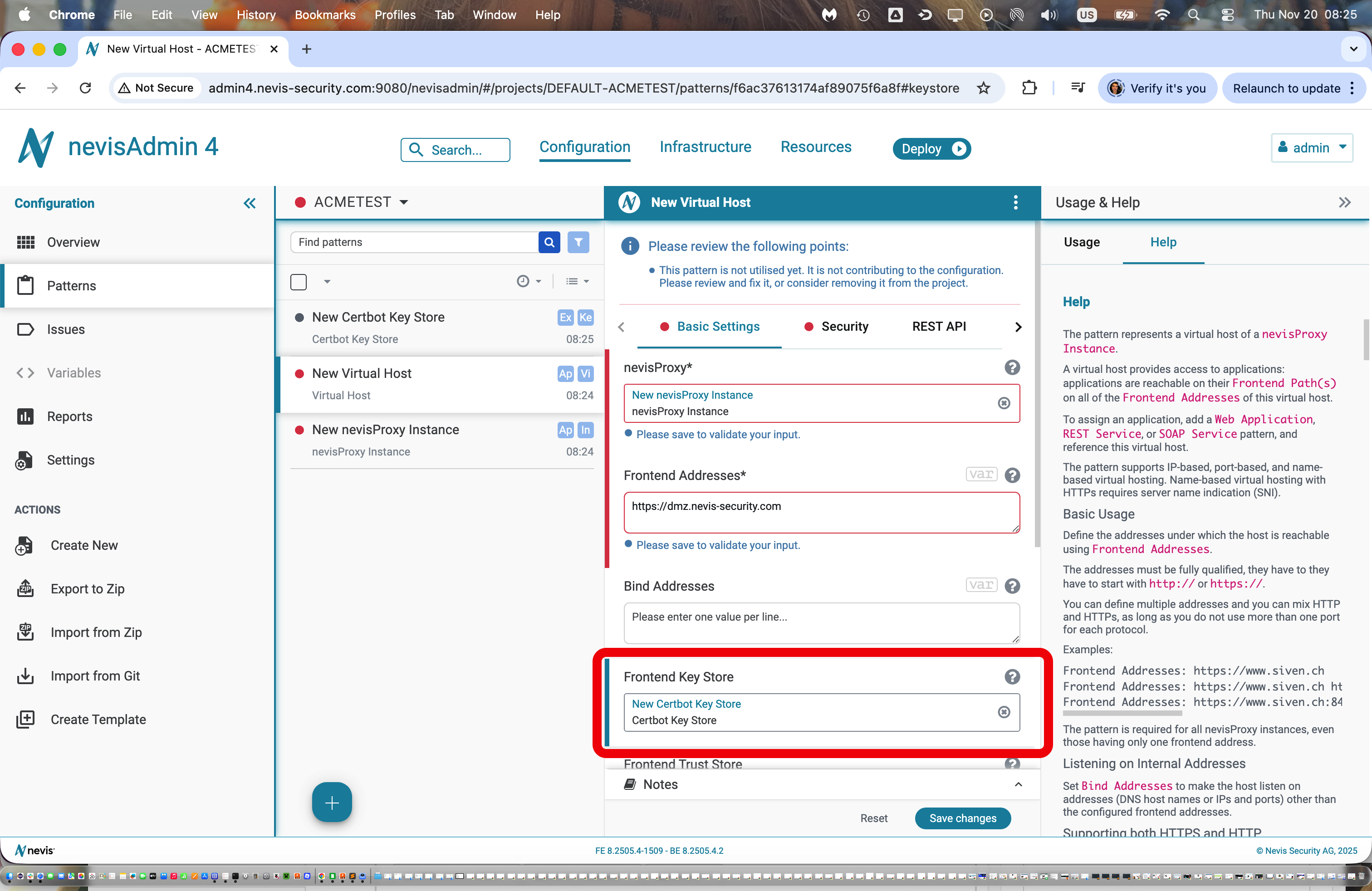

The 'Certbot Key Store' activates/initiates ACME for this key/certificate pair

The certificate is based on the 'Frontend Addresses'/name configured above

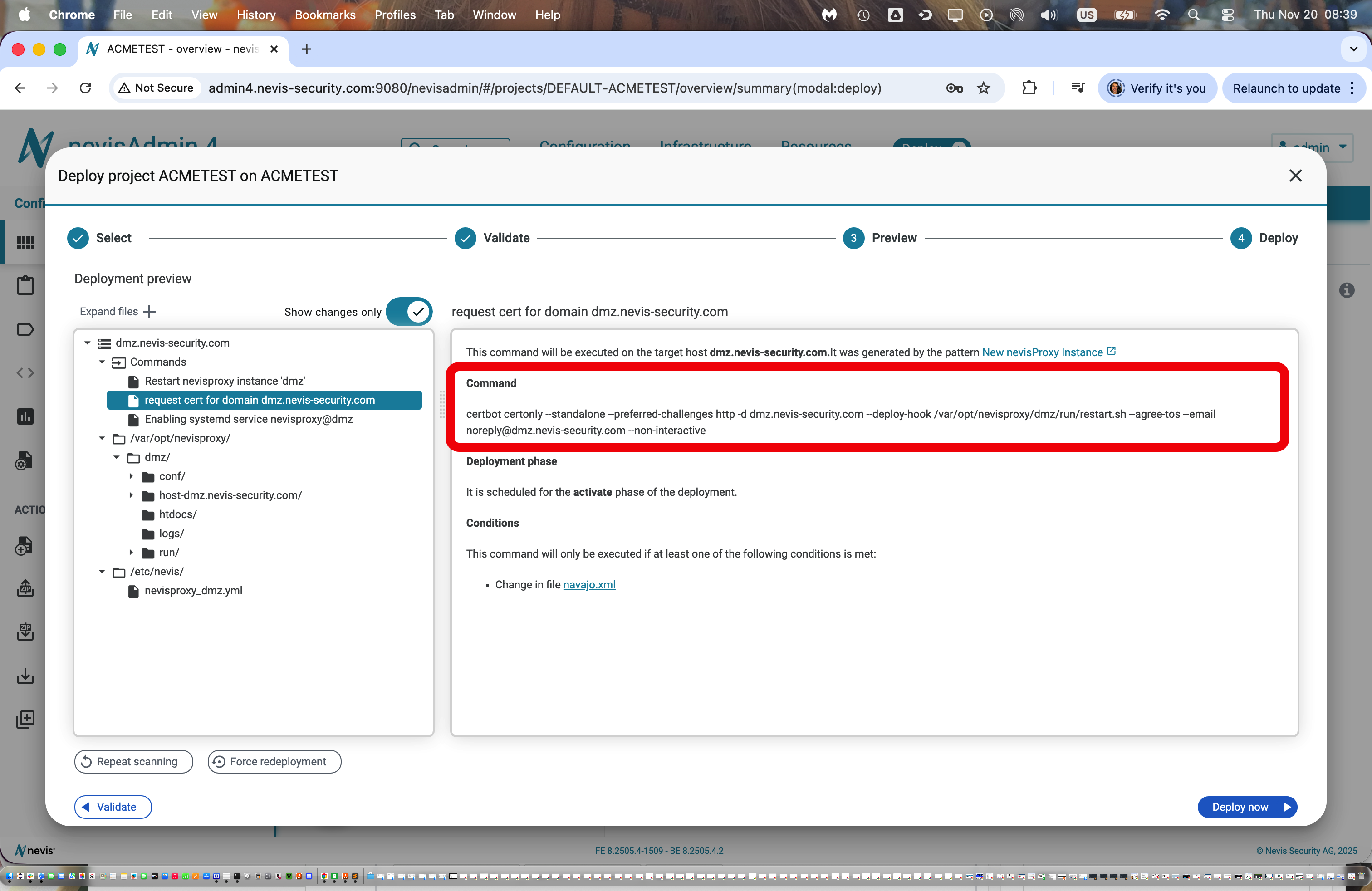

During deployment in nevisAdmin4, the preview screen shows the certbot command that will be executed on the destination host

The scripts that are generated by the pattern and run on the target machine take care of placing the key material in the proper location where it is picked up by the nevis component (e.g. nevisproxy configuration)

Shell based on the nevisAppliance Here’s a quick wrap up using certbot for requesting a new certificate

 root@appliance:/tmp# certbot certonly --standalone --preferred-challenges http -d nevis.net,www.nevis.net
 Saving debug log to /var/log/letsencrypt/letsencrypt.log
 Enter email address (used for urgent renewal and security notices)
  (Enter 'c' to cancel): [email protected]

 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
 Please read the Terms of Service at
 https://letsencrypt.org/documents/LE-SA-v1.5-February-24-2025.pdf. You must
 agree in order to register with the ACME server. Do you agree?
 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
 (Y)es/(N)o: y

 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
 Would you be willing, once your first certificate is successfully issued, to
 share your email address with the Electronic Frontier Foundation, a founding
 partner of the Let's Encrypt project and the non-profit organization that
 develops Certbot? We'd like to send you email about our work encrypting the web,
 EFF news, campaigns, and ways to support digital freedom.
 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
 (Y)es/(N)o: y
 Account registered.
 Requesting a certificate for nevis.net and www.nevis.net

 Successfully received certificate.
 Certificate is saved at: /etc/letsencrypt/live/nevis.net/fullchain.pem
 Key is saved at:         /etc/letsencrypt/live/nevis.net/privkey.pem
 This certificate expires on 2026-02-04.
 These files will be updated when the certificate renews.
 Certbot has set up a scheduled task to automatically renew this certificate in the background.

 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
 If you like Certbot, please consider supporting our work by:
  * Donating to ISRG / Let's Encrypt:   https://letsencrypt.org/donate
  * Donating to EFF:                    https://eff.org/donate-le
 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Certbot has now installed a service on the nevisAppliance that checks the expiration of this certificate. You can see the service here:

root@appliance:/tmp# systemctl list-timers
NEXT                        LEFT         LAST                        PASSED       UNIT                         ACTIVATES
Thu 2025-11-06 06:39:00 GMT 9min left    Thu 2025-11-06 06:09:03 GMT 20min ago    phpsessionclean.timer        phpsessionclean.service
Thu 2025-11-06 07:32:27 GMT 1h 2min left Wed 2025-11-05 07:32:27 GMT 22h ago      systemd-tmpfiles-clean.timer systemd-tmpfiles-clean.service
Thu 2025-11-06 14:48:37 GMT 8h left      Wed 2025-11-05 19:48:25 GMT 10h ago      apt-daily.timer              apt-daily.service
Thu 2025-11-06 18:53:38 GMT 12h left     -                           -            certbot.timer                certbot.service                  <===================
Fri 2025-11-07 00:00:00 GMT 17h left     Thu 2025-11-06 00:00:02 GMT 6h ago       dpkg-db-backup.timer         dpkg-db-backup.service
Fri 2025-11-07 00:00:00 GMT 17h left     Thu 2025-11-06 00:00:02 GMT 6h ago       logrotate.timer              logrotate.service
Fri 2025-11-07 03:11:30 GMT 20h left     Thu 2025-11-06 01:00:53 GMT 5h 28min ago man-db.timer                 man-db.service
Fri 2025-11-07 06:38:39 GMT 24h left     Thu 2025-11-06 06:04:20 GMT 25min ago    apt-daily-upgrade.timer      apt-daily-upgrade.service
Sun 2025-11-09 03:10:59 GMT 2 days left  Sun 2025-11-02 03:10:41 GMT 4 days ago   e2scrub_all.timer            e2scrub_all.service
Mon 2025-11-10 00:08:10 GMT 3 days left  Mon 2025-11-03 01:14:39 GMT 3 days ago   fstrim.timer                 fstrim.service

10 timers listed.
Pass --all to see loaded but inactive timers, too.
root@appliance:/tmp# systemctl status certbot.service
○ certbot.service - Certbot
     Loaded: loaded (/lib/systemd/system/certbot.service; static)
     Active: inactive (dead)
TriggeredBy: ● certbot.timer
       Docs: file:///usr/share/doc/python-certbot-doc/html/index.html
             https://certbot.eff.org/docs
root@appliance:/tmp# systemctl status certbot.timer
● certbot.timer - Run certbot twice daily
     Loaded: loaded (/lib/systemd/system/certbot.timer; enabled; preset: enabled)
     Active: active (waiting) since Thu 2025-11-06 06:06:15 GMT; 34min ago
    Trigger: Thu 2025-11-06 18:53:38 GMT; 12h left
   Triggers: ● certbot.service

Nov 06 06:06:15 appliance systemd[1]: Started certbot.timer - Run certbot twice daily.

root@appliance:/tmp# cat /lib/systemd/system/certbot.service
[Unit]
Description=Certbot
Documentation=file:///usr/share/doc/python-certbot-doc/html/index.html
Documentation=https://certbot.eff.org/docs
[Service]
Type=oneshot
ExecStart=/usr/bin/certbot -q renew --no-random-sleep-on-renew
PrivateTmp=true

The key material is stored in a reboot-resistant area on the nevisAppliance:

root@appliance:/tmp# ls -l /etc/letsencrypt/live
total 8
drwxr-xr-x 2 root root 4096 Nov  6 06:24 nevis.net
-rw-r--r-- 1 root root  740 Nov  6 06:24 README
root@appliance:/tmp# ls -l /etc/letsencrypt/live/nevis.net/
total 4
lrwxrwxrwx 1 root root  35 Nov  6 06:24 cert.pem -> ../../archive/nevis.net/cert1.pem
lrwxrwxrwx 1 root root  36 Nov  6 06:24 chain.pem -> ../../archive/nevis.net/chain1.pem
lrwxrwxrwx 1 root root  40 Nov  6 06:24 fullchain.pem -> ../../archive/nevis.net/fullchain1.pem
lrwxrwxrwx 1 root root  38 Nov  6 06:24 privkey.pem -> ../../archive/nevis.net/privkey1.pem
-rw-r--r-- 1 root root 692 Nov  6 06:24 README

root@appliance:/tmp# ls -l /etc/letsencrypt/live/nevis.net/../../archive/nevis.net/
total 16
-rw-r--r-- 1 root root 1302 Nov  6 06:24 cert1.pem
-rw-r--r-- 1 root root 1566 Nov  6 06:24 chain1.pem
-rw-r--r-- 1 root root 2868 Nov  6 06:24 fullchain1.pem
-rw------- 1 root root  241 Nov  6 06:24 privkey1.pem

root@appliance:/etc/httpd# cat /etc/cron.d/certbot
# /etc/cron.d/certbot: crontab entries for the certbot package
#
# Upstream recommends attempting renewal twice a day
#
# Eventually, this will be an opportunity to validate certificates
# haven't been revoked, etc.  Renewal will only occur if expiration
# is within 30 days.
#
# Important Note!  This cronjob will NOT be executed if you are
# running systemd as your init system.  If you are running systemd,
# the cronjob.timer function takes precedence over this cronjob.  For
# more details, see the systemd.timer manpage, or use systemctl show
# certbot.timer.
SHELL=/bin/sh
PATH=/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin

0 */12 * * * root test -x /usr/bin/certbot -a \! -d /run/systemd/system && perl -e 'sleep int(rand(43200))' && certbot -q renew --no-random-sleep-on-renew

For testing purposes, a certificate renewal can be simulated using the 'dryrun' argument with certbot:

root@appliance:/etc/httpd# certbot renew --dry-run
Saving debug log to /var/log/letsencrypt/letsencrypt.log

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Processing /etc/letsencrypt/renewal/nevis.net.conf
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Account registered.
Simulating renewal of an existing certificate for nevis.net and www.nevis.net

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Congratulations, all simulated renewals succeeded:
  /etc/letsencrypt/live/nevis.net/fullchain.pem (success)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
root@appliance:/etc/httpd# openssl x509 -text -in  /etc/letsencrypt/live/nevis.net/fullchain.pem
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            05:98:ae:6c:ae:c9:67:ea:f3:8e:11:41:a4:fb:7f:c0:60:42
        Signature Algorithm: ecdsa-with-SHA384
        Issuer: C = US, O = Let's Encrypt, CN = E7
        Validity
            Not Before: Nov  6 05:26:23 2025 GMT
            Not After : Feb  4 05:26:22 2026 GMT
        Subject: CN = nevis.net
        Subject Public Key Info:
            Public Key Algorithm: id-ecPublicKey
                Public-Key: (256 bit)
                pub:
                    04:2e:6a:34:8a:d0:12:e1:22:43:51:c7:6c:61:2f:
                    e8:7a:ac:...
                ASN1 OID: prime256v1
                NIST CURVE: P-256
        X509v3 extensions:
            X509v3 Key Usage: critical
                Digital Signature
            X509v3 Extended Key Usage:
                TLS Web Server Authentication, TLS Web Client Authentication
            X509v3 Basic Constraints: critical
                CA:FALSE
            X509v3 Subject Key Identifier:
                F2:1B:53:A1:25:41:41:40:DB:1F:96:5B:4C:C3:99:44:A2:AF:BF:EA
            X509v3 Authority Key Identifier:
                AE:48:9E:DC:87:1D:44:A0:6F:DA:A2:E5:60:74:04:78:C2:9C:00:80
            Authority Information Access:
                CA Issuers - URI:http://e7.i.lencr.org/
            X509v3 Subject Alternative Name:
                DNS:nevis.net, DNS:www.nevis.net
            X509v3 Certificate Policies:
                Policy: 2.23.140.1.2.1
            X509v3 CRL Distribution Points:
                Full Name:
                  URI:http://e7.c.lencr.org/67.crl
            CT Precertificate SCTs:
                Signed Certificate Timestamp:
                    Version   : v1 (0x0)
                    Log ID    : 49:9C:9B:...
                    Timestamp : Nov  6 06:24:53.989 2025 GMT
                    Extensions: none
                    Signature : ecdsa-with-SHA256
                                30:45:02:21:00:...
                Signed Certificate Timestamp:
                    Version   : v1 (0x0)
                    Log ID    : 96:97:64:...
                    Timestamp : Nov  6 06:24:54.048 2025 GMT
                    Extensions: none
                    Signature : ecdsa-with-SHA256
                                30:44:02:20:...
    Signature Algorithm: ecdsa-with-SHA384
    Signature Value:
        30:66:02:31:...
-----BEGIN CERTIFICATE-----
MIIDlDCCAxmgAwIBAgISBZiubK7JZ...
-----END CERTIFICATE-----

Certificates on the respective nevisAppliance that are under control of certbot can be listed with this command:

root@appliance:/tmp# certbot certificates --standalone
Saving debug log to /var/log/letsencrypt/letsencrypt.log

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Found the following certs:
  Certificate Name: nevis.net
    Serial Number: 598ae6caec967eaf38e1141a4fb7fc06042
    Key Type: ECDSA
    Domains: nevis.net www.nevis.net
    Expiry Date: 2026-02-04 05:26:22+00:00 (VALID: 89 days)
    Certificate Path: /etc/letsencrypt/live/nevis.net/fullchain.pem
    Private Key Path: /etc/letsencrypt/live/nevis.net/privkey.pem
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
